What "DTM" actually means
Direct-to-Metal (DTM) primers contain enough acid or epoxy chemistry to chemically bond directly with bare steel, aluminum, or galvanized substrates — no separate etch primer required. They simplify the prep step from "etch → primer → sand → topcoat" down to "DTM primer → sand → topcoat."
The trade-off: DTM primers cost more per gallon and are usually 2K (require activator). They're worth it for production speed and adhesion reliability.
Surface prep matters more than the primer
Even the best DTM primer fails on a poorly prepped panel. The minimum prep checklist:
- Sand the metal to 80–180 grit. Glossy metal doesn't grip; the primer needs a tooth to bond to.
- Clean with a wax & grease remover (PrepSol, Eastwood PRE, or similar). Two passes — wipe on, wipe off before it dries.
- Final wipe with a panel-prep solvent just before primer. Skin oil left between WG remover and primer is a common adhesion failure cause.
- Tack-rag the panel. Don't skip this even on small parts. Lint or dust gets locked in by the first coat.
Mixing the activator
Common mix ratios for DTM primers stocked at AutofxMart:
| Brand | Ratio (Primer : Activator : Reducer) | Pot life |
|---|---|---|
| Valspar DTM 2008/2001/2004 | 4 : 1 : up to 10% | ~60 min |
| High Teck T520 | 4 : 1 : 0–5% | ~45 min |
| Axalta VS3200 Epoxy DTM | 2 : 1 (no reducer) | ~4 hr |
| SEM 50124 World Class DTM | 4 : 1 : 0 | ~30 min |
Use the brand's matching activator and reducer. Substituting a competitor's catalyst is the most common cause of poor cure, weak film, and adhesion failure.
Spraying technique
Gun setup
- Tip size: 1.4–1.6 mm for HVLP. 1.8 mm if you're shooting high-build.
- Pressure: 22–28 PSI at the gun (29–36 PSI inlet, depending on HVLP type).
- Distance: 6–8 inches from panel. Too close = runs; too far = dry overspray and pinholes.
Coat structure
- First coat: light tack coat. Don't try to cover. Flash 5–10 minutes.
- Second coat: medium-wet, full coverage. Flash 10–15 minutes.
- Third coat (build): wet but not dripping. This is your sanding layer.
Drying
Air dry 4–6 hours minimum before sanding. For production cycle, force-dry at 140°F for 30 minutes OR IR-cure for 8–12 minutes per panel.
Sand schedule before topcoat
- 320 grit dry for first cut
- 400–500 grit wet or dry for finish
- Tack-rag thoroughly before basecoat
Brand-specific quirks

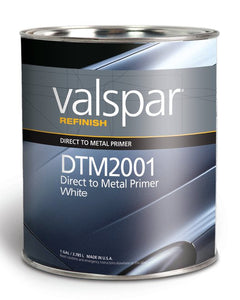

Valspar DTM 2008/2001/2004
The Valspar DTM family is the workhorse at most US production shops. Black (2008), white (2001), and gray (2004) blend well for shade-matching under different topcoat colors. The matching DTMA activator (sku dtma) is a quart and lasts roughly 4 gallons of primer when shot at 4:1.
High Teck T520
Aggressively priced; works well for general production. Sand a bit earlier than Valspar — the film cures harder and is more work to sand at 24 hours.
Axalta VS3200 Epoxy DTM
Slower cure but unbeatable adhesion on raw aluminum and galvanized. Worth the extra wait when working on aluminum panels or tubs.
Common failures and what they tell you
- Adhesion failure / lift-off — almost always inadequate sanding or contamination on the metal. Re-prep, re-prime.
- Slow / soft cure — off-ratio activator, wrong activator brand, or temperature below 60°F.
- Orange peel / dry spray — pressure too low, gun too far, or under-reduced for the conditions.
- Pinholes in the sanded primer — air entrapped during mix, or panel temperature too high during spray. Sand smooth and re-prime one coat.
