U-POL

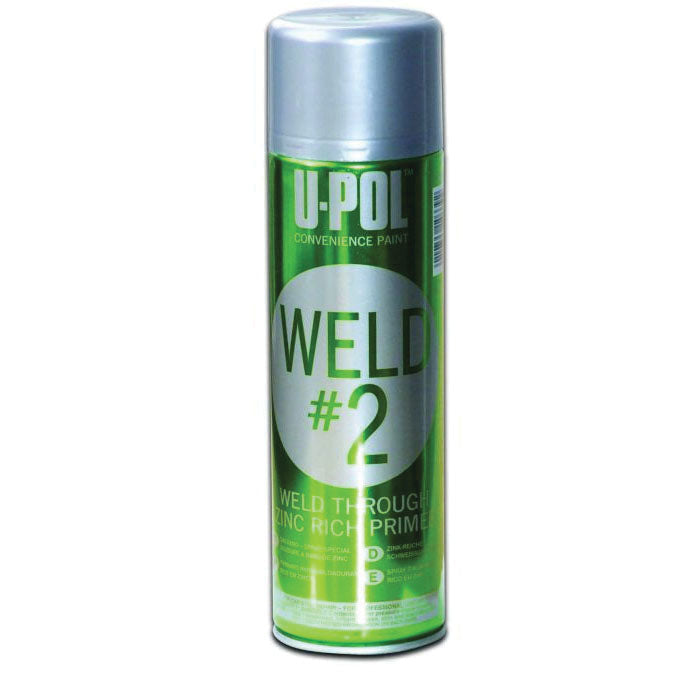

U-POL UP0789 WELD#2 Weld-Through Primer, 450 mL, Metallic Silver, 53.8 sq-ft Coverage, 10 to 20 min
No reviews yet
WARNING: Cancer & Reproductive Harm
California PROP65 WARNING: This product contains the following chemical(s) known to the State of California to cause birth defects or other reproductive harm. This product contains the following chemical(s) known to the State of California to cause c....
Tap for details → P65Warnings.ca.gov
Authorized dealer
Ships today
30-day returns
Overview
Built for the job.
A high adhesion, super conductive primer offering excellent rust and corrosion protection when applied to panels prior to Resistance Spot, MIG and TIG welding.
U-POL UP0789 WELD#2 Weld-Through Primer is a metallic-silver, high-solids primer designed for weld-through applications on repaired panels. It provides immediate corrosion protection and promotes adhesion of subsequent coating systems on automotive structures.
The 450 mL can cover up to 53.8 sq-ft per coat when applied at the recommended temperature of 68 °F. One to two coats are typical, with an air-dry time of 10-20 minutes, allowing rapid turnaround in a body shop environment. The formulation is compatible with aluminum, galvanized steel and previously primed substrates, making it suitable for mixed-metal repairs.
Due to its hazardous classification (acute toxicity, carcinogen, flammable, etc.), the primer must be applied with full PPE: eye protection, chemical-resistant gloves, protective clothing and a respirator. Ensure adequate ventilation and follow all H-statements on the SDS during use.
Why Pros Choose U-POL UPO
- High concentration of zinc or copper in the dry film
- Superior conductivity
- Clog free nozzle
- Fast drying - speeds up the welding process
- High adhesion
How to Use
For direct to metal, aluminum, galvanized steel
- Verify ambient temperature is at least 68 °F (20 °C) before starting.
- Clean the compatible substrate (aluminum, galvanized metal, or previously primed surface) to remove oil, grease, and loose material; ensure it is dry.
- Apply a uniform coat of Weld-Through Primer using spray equipment. One coat may be sufficient for light coverage; apply a second coat if required for full opacity.
- Allow the primer to air-dry 10-20 minutes between coats or before handling.
- If a second coat is applied, repeat step 3 and allow an additional 10-20 minutes air dry before proceeding to topcoat or finish work.
Compatibility
Compatible substrates: Copper.
Specifications
| Part No. | 0789 |
|---|---|
| Product Line | UPO |
| MFR Model | UP0789 |
| Standard/Approvals | California PROP65 WARNING: This product contains the following chemical(s) known to the State of California to cause birth defects or other reproductive harm. This product contains the following chemical(s) known to the State of California to cause c.... |
| Application | For direct to metal, aluminum, galvanized steel |
| Manufacturer | U-POL |
| UPC | 501079610339 |
| Brand | U-POL® |
| Maximum Sale Quantity | 6 |
| Maximum Sale Day | 7 |
| Container Size (mL) | 450 |
| Color | Metallic Silver |
| Curing Time | 10 to 20 min Air Dry |
| Coverage (sq-ft) | 53.8 |
- Application Temp.
- 68 °F
- Coverage
- 53.8 sq-ft per 450 mL
- Dry Time
- 10-20 min air dry
- Compatible Substrates
- Aluminum, galvanized, primer
- Coats
- 1-2
About U-POL
U-POL delivers pro-grade refinish products including Raptor bed liner, Dolphin glazes, and Power Can aerosols used in shops worldwide.
Frequently Asked Questions
What substrates are compatible with U-POL UP0789 Weld-Through Primer?
The primer can be applied to aluminum, galvanized metal, and previously primed surfaces.
How long does the primer take to dry before recoating or sanding?
Air-dry curing time is 10 - 20 minutes at an application temperature of 68 °F.
What personal protective equipment is required when applying this product?
Use eye protection, chemical-resistant gloves, protective clothing, and a respirator approved for organic vapors.
How many coats are recommended?
Apply 1 - 2 coats depending on the required coverage and substrate condition.
What is the coverage rate for a 450 mL can?
The product provides approximately 53.8 sq-ft of coverage per can.
Documents & Safety
- Safety Data Sheet (SDS)
- Technical Data Sheet (TDS)
- upol_up0768_catalog.pdf
- upol_up0789_specification_sheet.pdf
Danger - This weld-through primer is highly flammable and can cause serious eye damage, skin burns, respiratory irritation, and may be toxic if inhaled or swallowed. It also poses environmental hazards to aquatic life. Wear chemical-resistant gloves, safety goggles or a face shield, protective clothing (long sleeves, coveralls), and use a suitable respirator with organic vapor/particulate filters. Avoid breathing vapors, skin contact, and eye exposure. Always refer to the full SDS before use.
Why Buy from autofxmart
- Authorized distributor — authentic, factory-fresh stock.
- Fast US shipping — most orders ship within 1 business day.
- 30-day returns — buy with confidence.
- Pro-shop pricing — bulk discounts available on request.
- Expert support — questions? Email us at support@autofxmart.com.
Cure & dry schedule
Timing at 77°F
Flash (coats)
5 - 10 mins
Weldable
10 - 20 mins
How to apply
Steps
1Clean and degrease the surface, then scuff as needed.
2Mask off surrounding panels and trim.
3Mix to the product's ratio and strain.
4Apply 2–3 even coats, flashing between each.
5Let cure fully before sanding, buffing, or assembly.
Specifications
Full data
Frequently asked
Good to know
U-POL UPO is compatible with Copper. Always ensure the surface is properly cleaned, degreased, and sanded before application to achieve the strongest adhesion and a professional finish.
The curing time for U-POL UPO is 10 to 20 min Air Dry. Drying and curing times may vary with temperature, humidity, and film thickness — always consult the Technical Data Sheet (TDS) for exact cycle conditions.
This listing ships U-POL UPO in a 450 (CN) container. Check the autofxmart catalog for other sizes and bulk pricing.
Most in-stock orders for U-POL UPO ship the same or next business day from our US warehouse. Expedited options are available at checkout. Freight-class items may require an additional 1–2 days for carrier pickup.
Yes. autofxmart is an authorized distributor of U-POL products. Every unit is factory-fresh, sealed, and backed by the manufacturer's standard warranty. If you have a concern, contact support@autofxmart.com and we will make it right.
