Overview
Built for the booth.
The 1 US Gallon Raptor Kit is the industry standard in bedliner coating. Each kit contains four bottles of Raptor and one tin of hardener. Each kit covers approximately 125 square feet, enough to do a full size pick-up truck bed. Compatible with both Raptor Schutz and Professional Vari-Nozzle application guns.

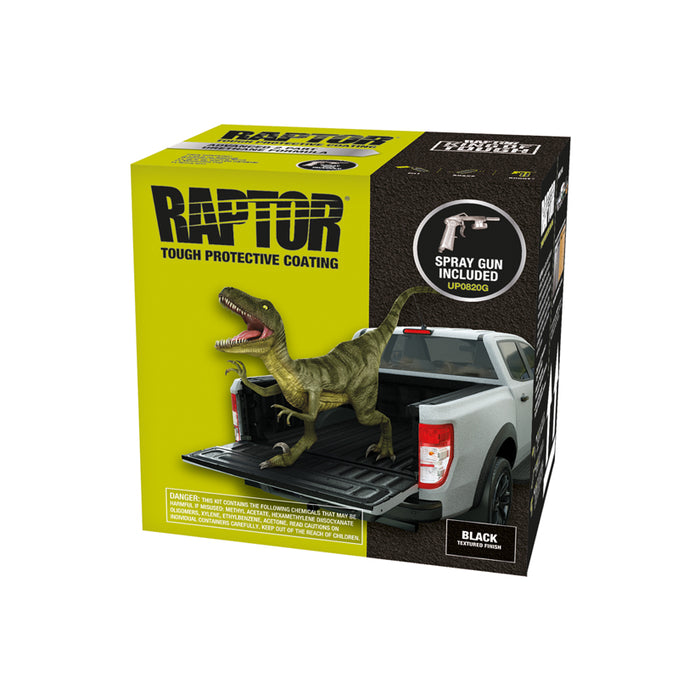

The U-POL RAPTOR UP0820V Low VOC Raptor Kit is a high-performance, two-component coating designed for professional body shop applications where low odor and reduced VOC emissions are required. It is supplied in a 3:1 mixing ratio compatible with HVLP gravity guns and provides up to 125 sq-ft of coverage per kit when applied in two coats.
Formulated for a broad range of substrates-including aluminum, bare metal, concrete, e-coat, fiberglass, galvanized steel, OEM plastics, polyester, primer, SMC, and wood-the kit delivers consistent flash times and cure performance while maintaining a VOC level of 9.18 lb/gal US (1120 g/L). This low-VOC formulation meets stringent environmental regulations without compromising film build or durability.
Due to its classification as acute toxic, carcinogenic, and flammable, proper personal protective equipment is mandatory: eye protection, chemical-resistant gloves, protective clothing, and a respirator must be worn. Ensure adequate ventilation during mixing and application to control inhalation hazards.
Why Pros Choose U-POL 2.6 VOC
- Provides a tough scratch and stain resistant surface and protects against rust and corrosion
- UV resistant - delivers a high level of fade resistance
- Water resistant - provides a water resistant finish, keeping moisture out and reducing rust
- Resistant to a wide range of chemicals including fuels, hydraulic oils, animal urine, salt water and more
- Quick and easy to use
- Easy as fill-shake-shoot
- Provides excellent adhesion across many substrates
- Easy to clean simply hose off
- Can be applied with U-POL® application gun, HVLP gun, roller or brush
- UV Resistant - Will not fade
How to Use
Use for automotive, construction, marine, recreational, industrial, agricultural and commercial applications.
- Prepare the substrate by removing all loose material, oil, grease, and contaminants; ensure the surface is dry and free of dust.
- Mix the two components in a 3 : 1 weight ratio using a high-volume low-pressure (HVLP) gravity gun. Mix thoroughly until uniform.
- Apply the material with an even sweeping motion, covering the surface uniformly.
- Allow the first coat to flash (dry) before applying a second coat; total of two coats is recommended for full coverage.
Specifications
| Part No. | 0820V |
|---|---|
| Product Line | UPO |
| MFR Model | UP0820V |
| Standard/Approvals | FMVSS 302 | ISO 3795 and BS AU 169A Flammability Tested | ASTM E303-93 Slip Resistance Tested | | California Pro65 Warning: Cancer |
| Includes | (4) Bottles of Raptor and (1) Tin of Hardener |
| Application | Use for automotive, construction, marine, recreational, industrial, agricultural and commercial applications. |
| Manufacturer | U-POL |
| Trade Mark | RAPTOR® |
| Alternate Part Number-1 | UPO.0820VG |
| UPC | 501079610880 |
| Brand | U-POL® |
| Maximum Sale Quantity | 2 |
| Maximum Sale Day | 7 |
| Color | Black |
| Mixing Ratio | 3:01 |
| Coverage (sq-ft) | 125 |
| Type | 2.6 VOC |
- Mix Ratio
- hvlp gravity gun
- VOC
- 9.18 lb/gal US (1120 g/L)
- Coverage
- 125 sq-ft
- Coats
- 2
- Compatible Substrates
- aluminum, bare metal, concrete, e-coat, fiberglass, galvanized, OEM, plastic, polyester, primer, SMC, wood
About U-POL
U-POL delivers pro-grade refinish products including Raptor bed liner, Dolphin glazes, and Power Can aerosols used in shops worldwide.
Frequently Asked Questions
What substrates can I apply the Raptor UP0820V to?
The kit is compatible with aluminum, bare metal, concrete, e-coat, fiberglass, galvanized steel, OEM finishes, plastic, polyester, primer, SMC, and wood.
What personal protective equipment (PPE) is required when using this product?
Use eye protection, chemical-resistant gloves, protective clothing, and a respirator as indicated on the SDS.
How many coats are recommended for full coverage?
The system is designed to be applied in two coats.
What is the coverage rate of the Raptor UP0820V kit?
The kit provides approximately 125 sq-ft of coverage per kit at the specified mixing ratio.
Documents & Safety
Danger - This product can cause serious health effects. Wear chemical-resistant gloves, safety goggles or face shield, protective clothing (coveralls or apron), and a suitable respirator when mixing or applying. It is toxic if inhaled, may cause severe skin burns and eye damage, is flammable, and is hazardous to the environment and reproductive system. Avoid creating dust or mist; keep away from open flames. Always refer to the full SDS before use.
Why Buy from autofxmart
- Authorized distributor — authentic, factory-fresh stock.
- Fast US shipping — most orders ship within 1 business day.
- 30-day returns — buy with confidence.
- Pro-shop pricing — bulk discounts available on request.
- Expert support — questions? Email us at support@autofxmart.com.
Cure & dry schedule
Timing at 77°F
Pot life
60 minutes
Flash
60 minutes
Overpaint
Less than 1 hour
Force-dry
30 minutes @ 140°F
Full cure
5-7 days
How to apply
Steps
1Read the product's instructions before first use.
2Set it up and check fittings/connections.
3Use steady, even technique for consistent results.
4Clean after use to keep it performing.
5Store dry and protected between jobs.
Specifications
Full data
Frequently asked
Good to know
U-POL UPO uses a mix ratio of 3:01. Always measure activators and reducers accurately to maintain film properties and pot life — deviating from the ratio can cause adhesion or curing problems.
Most in-stock orders for U-POL UPO ship the same or next business day from our US warehouse. Expedited options are available at checkout. Freight-class items may require an additional 1–2 days for carrier pickup.
Yes. autofxmart is an authorized distributor of U-POL products. Every unit is factory-fresh, sealed, and backed by the manufacturer's standard warranty. If you have a concern, contact support@autofxmart.com and we will make it right.
The MPN for U-POL UPO is 0820V. Use this number when cross-referencing against TDS, SDS, or legacy supplier catalogs.
