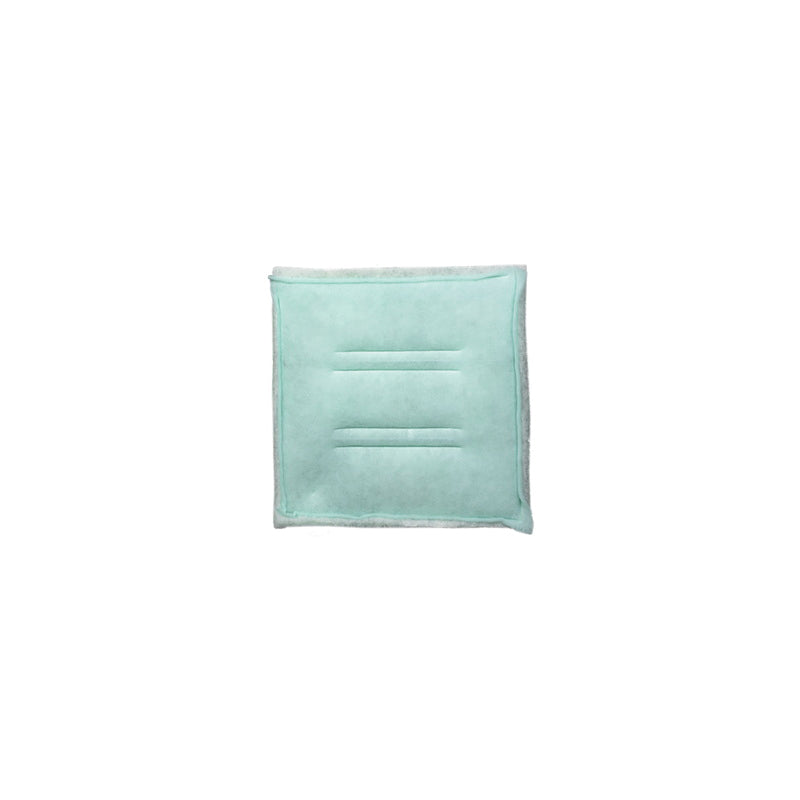

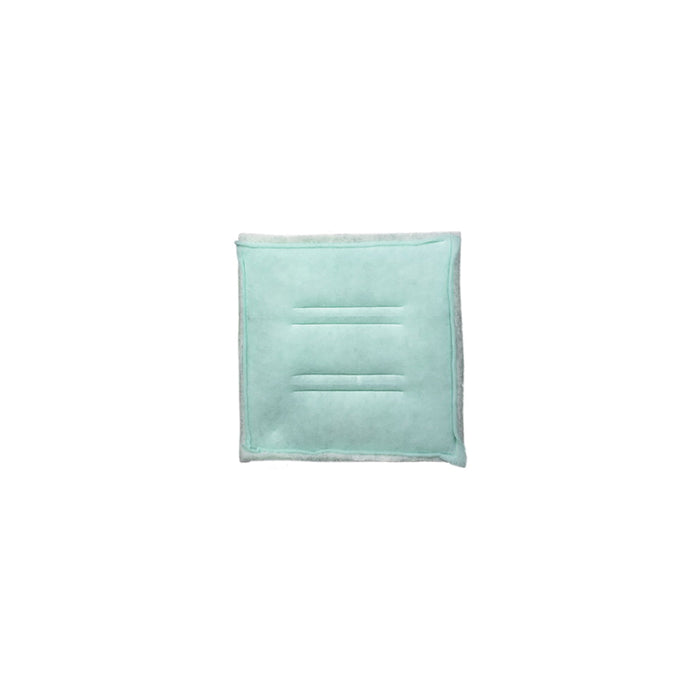

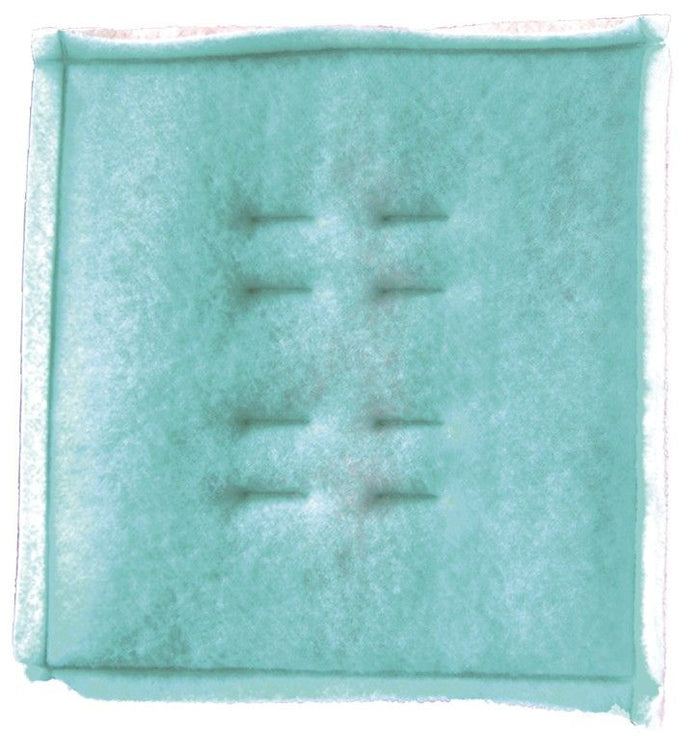

Viskon-Aire 20"W x 20"H Series 154 Panel (Internal Wire) / 3 Ply / With Tack
Viskon-Aire's Series 154 is three ply 100% 6/15/40 denier graduated density polyester media with a internal tackifier between the 2nd and 3rd layers. It is designed to replace pleated and/or fiberglass throwaway filters.
Why Pros Choose Viskon-Aire Filters Internal Wire
- Open weave on air entering side traps larger particles; tight weave on air exiting side captures smaller particles
- Media heat sealed around 9 ga wire frame creating self-sealing gasket, dramatically increasing efficiency
- Takes up 50% less space compared to standard cardboard framed filters, saving money and lessening trips by maintenance personnel to air handler
- Unaffected by humidity, moisture and most corrosive chemicals
- Three ply 100% 6/15/40 denier graduated density tackified, premium-grade, polyester media, heat sealed around 9 ga corrosion-resistant internal wire frame
How to Use
Hospitals, Schools, Food and Pharmaceutical Processing, General Commercial and Industrial Applications, Office Complexes, Airports, Paint Booths, Computer Rooms
Compatibility
Compatible substrates: Fiberglass.
Compatible paint systems: Polyester.
Specifications
| Part No. | 154-002 |
|---|---|
| Product Line | VIS |
| MFR Model | 154-002 |
| Standard/Approvals | ANSI/ASHRAE 52.2-2017 |
| Application | Hospitals, Schools, Food and Pharmaceutical Processing, General Commercial and Industrial Applications, Office Complexes, Airports, Paint Booths, Computer Rooms |
| Manufacturer | Viskon-Aire Filters |
| UPC | 636947101168 |
| Brand | Viskon-Aire |
| Type | Internal Wire |
| Series | 154 |
| Width (in) | 20 |
| Height (in) | 20 |
| Media Material | 6/15/40 Denier Polyester |
About Viskon-Aire Filters
Viskon-Aire Filters is a trusted manufacturer of professional auto body and refinish products used by collision repair shops and restoration specialists across North America.
Frequently Asked Questions
What surfaces can Viskon-Aire Filters VIS be used on?
Viskon-Aire Filters VIS is compatible with Fiberglass. Always ensure the surface is properly cleaned, degreased, and sanded before application to achieve the strongest adhesion and a professional finish.
How fast does autofxmart ship Viskon-Aire Filters VIS?
Most in-stock orders for Viskon-Aire Filters VIS ship the same or next business day from our US warehouse. Expedited options are available at checkout. Freight-class items may require an additional 1–2 days for carrier pickup.
Is this Viskon-Aire Filters product genuine?
Yes. autofxmart is an authorized distributor of Viskon-Aire Filters products. Every unit is factory-fresh, sealed, and backed by the manufacturer's standard warranty. If you have a concern, contact support@autofxmart.com and we will make it right.
What is the manufacturer part number (MPN) for Viskon-Aire Filters VIS?
The MPN for Viskon-Aire Filters VIS is 154-002. Use this number when cross-referencing against TDS, SDS, or legacy supplier catalogs.
