Overview
Built for the job.
Our 3M™ Panel bonding adhesive is a cost-effective two-part epoxy adhesive for bonding replacement body panels. From its fast, convenient cartridge system the adhesive seals and bonds steel, aluminum, SMC, and FRP securely in a single operation.

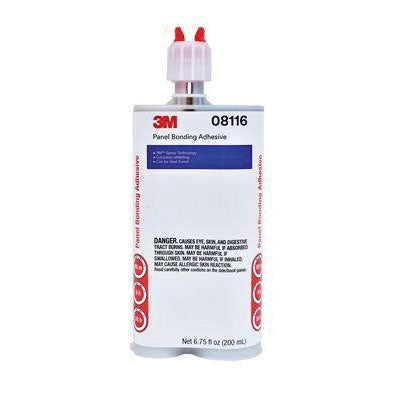

3M 08116 is a two-part panel bonding adhesive supplied in a 200 mL duo-syringe cartridge. It is formulated for high-strength structural bonds on panels and repair sections, particularly where a viscous, gap-filling formulation is required.
The system offers a work time of 90-120 minutes and reaches full cure within 24 hours at ambient temperature, providing reliable strength for aluminum, steel, fiberglass, FRP, OEM plastics, primers, SMC and other bare metal substrates. Its low viscosity allows complete wet-out in complex joint geometries while maintaining excellent shear resistance.
Handling requires standard PPE: eye protection, chemical-resistant gloves, protective clothing and a respirator when ventilation is inadequate. Follow the SDS recommendations for acute toxicity, aspiration hazard, skin corrosion and respiratory protection during mixing and application.
Why Pros Choose 3M 2-Part
- A high-performance two component epoxy adhesive bonds a variety of steel, aluminum, SMC and FRP (traditional fiberglass) non-structural components
- Bonds outer body panels to reduce welding and riveting time
- Corrosion inhibiting formula protects work for long-lasting results
- Has excellent shelf life opened or unopened, reducing unused product replacement costs
- Can be spot welded through or used in conjunction with rivets for added reinforcement
- Heat accelerated curing affords long work times and reduces cycle time
- Also use to reinforce welded or riveted structural components
- Product has corrosion inhibiting formula
How to Use
For door hem flanges, door skins, floor pans, metal bonding and metal to composite bonding
- Clean the substrate thoroughly to remove oil, grease, dust, or loose material; ensure a dry, contaminant-free surface.
- Mix the two parts of the adhesive according to the manufacturer's instructions (typically 1:1 by volume). Use immediately; work time is 90-120 minutes.
- Apply a uniform bead of mixed adhesive to one substrate using a suitable applicator. Press the panels together and hold until the initial set is achieved.
- Maintain joint pressure for the remainder of the work time (up to 120 minutes) to allow full development of bond strength.
- Allow the assembly to cure for at least 24 hours before subjecting it to service loads or further handling.
Compatibility
Compatible substrates: Steel, Aluminum, Fiberglass, SMC.
Compatible paint systems: Epoxy.
Specifications
| Part No. | 8116 |
|---|---|
| Product Line | MMM |
| MFR Model | 8116 |
| Standard/Approvals | California PROP65 Warning: Cancer and Reproductive Harm | OSHA 29 CFR 1910.1200 |
| Application | For door hem flanges, door skins, floor pans, metal bonding and metal to composite bonding |
| Manufacturer | 3M Products |
| Alternate Part Number-1 | 60980109015 |
| UPC | 051135081167 |
| Brand | 3M™ |
| Maximum Sale Quantity | 12 |
| Maximum Sale Day | 7 |
| Applicable Materials | Steel, Aluminum, SMC/Fiberglass |
| Composition | 30 to 60% 4,4' Aliphatic Polymer Diamine, 10 to 30% Fused Silica, 7 to 20% Butadiene Acrylonitrile Polymer, 7 to 13% Alkyl Amines, 5 to 10% Tris(2,4,6-Dimethylaminomonomethyl)Phenol, 3 to 7% Bis(3-Aminopropyl) Ether Of Diethylene Glycol, 3 to 7% Poly(Oxypropylene)Diamine, 1 to 5% Calcium Nitrate, 1 to 5% Dimethyl Siloxane, Reaction Product With Silica, 0.1 to 1.5% Bis[(Dimethylamino)Methyl]Phenol, 0.1 to 1.5% N-Aminoethylpiperazine, 0.5 to 1.5% Poly(Oxypropylene)Triamine, < 0.5% Toluene |
| Application Time | 90 to 120 min |
| Specific Gravity | 1.2 |
| Color | Black |
| Container Size (mL) | 200 |
| Setting Time | 6 hr |
| Flash Point | >300 deg F |
| Container Type | Cartridge |
| Form | Viscous Liquid |
| Temperature Rating (deg F) | 70 |
| Type | 2-Part |
| Curing Time | 24 hr |
- Work Time
- 90-120 min
- Compatible Substrates
- Aluminum, bare metal, fiberglass, FRP, OEM, plastic, primer, SMC, steel
About 3M
3M is a global leader in abrasives, masking, and body repair products. Trusted by OEM collision centers for high-performance prep and finishing solutions.
Frequently Asked Questions
What substrates can I bond with this adhesive?
The adhesive is compatible with aluminum, bare metal, fiberglass, FRP, OEM plastics, primer-coated surfaces, SMC, and steel.
How long does it take to reach full cure?
Work time (open time) is 90-120 minutes. Full strength is achieved after approximately 24 hours at ambient temperature.
What personal protective equipment is required when handling this product?
Use eye protection, chemical-resistant gloves, protective clothing, and a respirator approved for organic vapors.
What are the primary health hazards associated with this adhesive?
The material is classified for acute toxicity, aspiration hazard, carcinogenicity, eye damage, organ toxicity, reproductive toxicity, respiratory irritation, and skin corrosion. Follow the PPE requirements and safety data sheet instructions.
Documents & Safety
DANGER: This adhesive contains hazardous chemicals that can cause serious health effects including eye damage, skin burns, respiratory irritation, and potential cancer risk. Required safety equipment includes chemical-resistant gloves, safety glasses, protective clothing, and respiratory protection in poorly ventilated areas. Avoid skin and eye contact, inhalation of vapors, and ingestion. Use only in well-ventilated areas or with appropriate respiratory protection. Always refer to the full SDS before use.
Why Buy from autofxmart
- Authorized distributor — authentic, factory-fresh stock.
- Fast US shipping — most orders ship within 1 business day.
- 30-day returns — buy with confidence.
- Pro-shop pricing — bulk discounts available on request.
- Expert support — questions? Email us at support@autofxmart.com.
How to apply
Steps
1Clean both surfaces to bare, dry substrate.
2Load the cartridge and fit the mixing nozzle.
3Apply an even bead (or clamp) where needed.
4Tool or smooth the joint before it skins over.
5Allow to cure fully before stressing or painting.
Specifications
Full data
Frequently asked
Good to know
3M Products MMM is compatible with Steel, Aluminum, Fiberglass, SMC. Always ensure the surface is properly cleaned, degreased, and sanded before application to achieve the strongest adhesion and a professional finish.
The curing time for 3M Products MMM is 24 hr. Drying and curing times may vary with temperature, humidity, and film thickness — always consult the Technical Data Sheet (TDS) for exact cycle conditions.
This listing ships 3M Products MMM in a 200 container. Check the autofxmart catalog for other sizes and bulk pricing.
Most in-stock orders for 3M Products MMM ship the same or next business day from our US warehouse. Expedited options are available at checkout. Freight-class items may require an additional 1–2 days for carrier pickup.
Yes. autofxmart is an authorized distributor of 3M Products. Every unit is factory-fresh, sealed, and backed by the manufacturer's standard warranty. If you have a concern, contact support@autofxmart.com and we will make it right.
