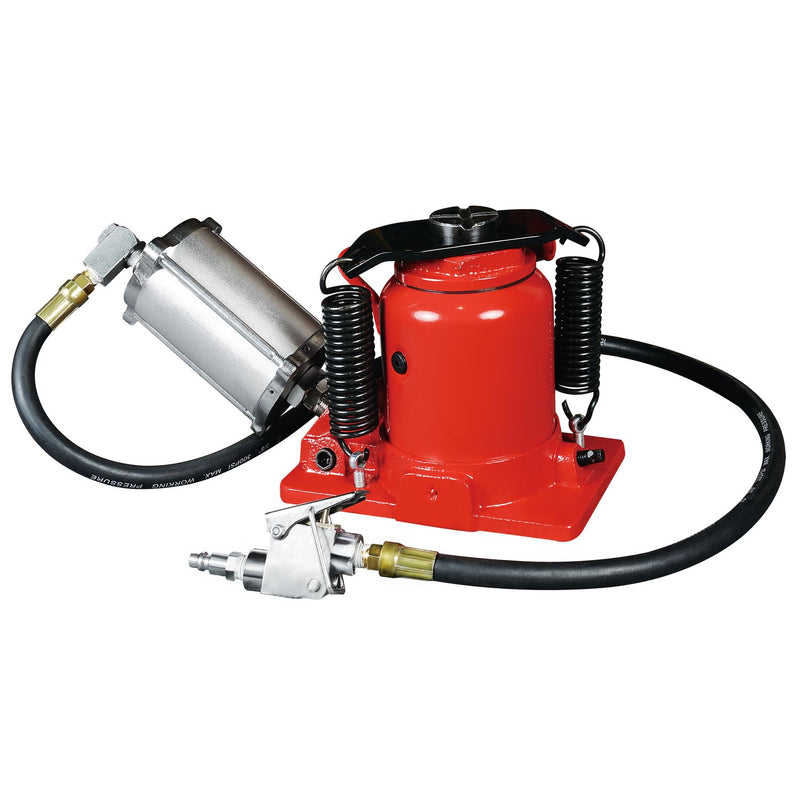

Ton Low Profile Air/Manual Bottle Jack
The Astro Tools 5304A 20 Ton Low Profile Air/Manual Bottle Jack is designed for operating either manually or pneumatically. The air hose can swivel in any direction of connection from the air source. This item is fitted with a safety valve to prevent against overloading, and the extension screw gives added height when…
Why Pros Choose Astro Pneumatic Tool Company AST
- Designed for operating either manually or pneumatically Air hose can swivel in any direction of connection from air source Fitted with a safety valve against overloading Extension screw gives added height when necessary Speedy and versatile air/hydraulic bottle jack is far quicker than using conventional hand operated hydraulic equipment and much safer since air power permits one-handed operation and enables user to watch load more closely Heavy duty design makes them ideal for a wide variety of automotive truck industrial and construction work SPECIFICATIONS: Capacity: 20T Minimum Height: 7" (178mm) Maximum Height: 12.75" (323mm) Lift: 3-3/8" (85mm) Screw: 2-3/8" (60mm) Air Pressure: 100-120psi Air Volume: 7CFM Net Weight: 29.10lbs (13.2kg) Piston Diameter: 2" ADDITIONAL INFORMATION: OD of top of lifting screw: 1.82" Height the lifting screw addes by threading all the way out: 2.6" Height ram stroke adds by fully extending: 3.93" Overall max height: 12.75" width of unit 6.5"
Compatibility
Compatible paint systems: 2K.
Specifications
| Part No. | 5304A |
|---|---|
| Product Line | AST |
| Manufacturer | Astro Pneumatic Tool Company |
| UPC | 745227022069 |
About Astro Pneumatic Tool Company
Astro Pneumatic Tool Company is a trusted manufacturer of professional auto body and refinish products used by collision repair shops and restoration specialists across North America.
Frequently Asked Questions
How fast does autofxmart ship Astro Pneumatic Tool Company AST?
Most in-stock orders for Astro Pneumatic Tool Company AST ship the same or next business day from our US warehouse. Expedited options are available at checkout. Freight-class items may require an additional 1–2 days for carrier pickup.
Is this Astro Pneumatic Tool Company product genuine?
Yes. autofxmart is an authorized distributor of Astro Pneumatic Tool Company products. Every unit is factory-fresh, sealed, and backed by the manufacturer's standard warranty. If you have a concern, contact support@autofxmart.com and we will make it right.
What is the manufacturer part number (MPN) for Astro Pneumatic Tool Company AST?
The MPN for Astro Pneumatic Tool Company AST is 5304A. Use this number when cross-referencing against TDS, SDS, or legacy supplier catalogs.
