Overview
Built for the booth.
The High Teck™ single stage factory pack colors-1400 series-is a user friendly, high solids, direct to metal, single stage topcoat that is great for the automotive diy marine and industrial markets due to the paints superior protective maintenance for surfaces exposed to humidity, chemicals and corrosive elements.…

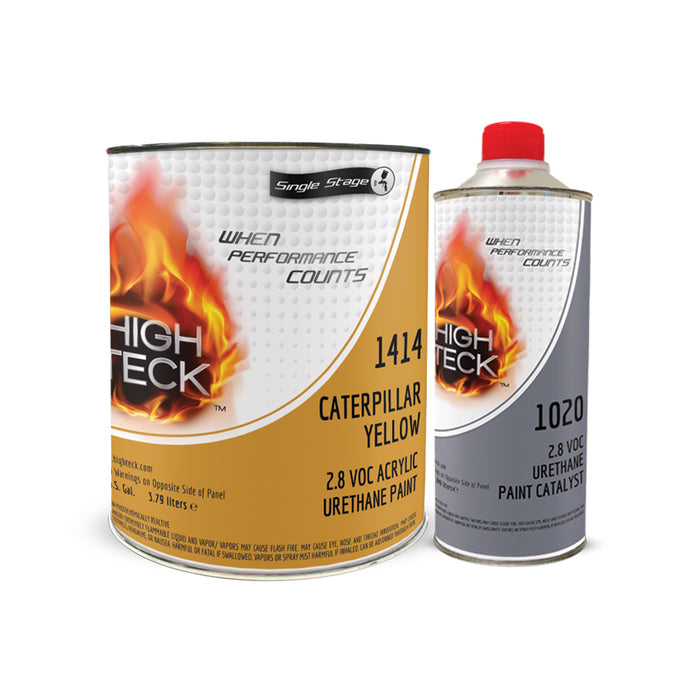

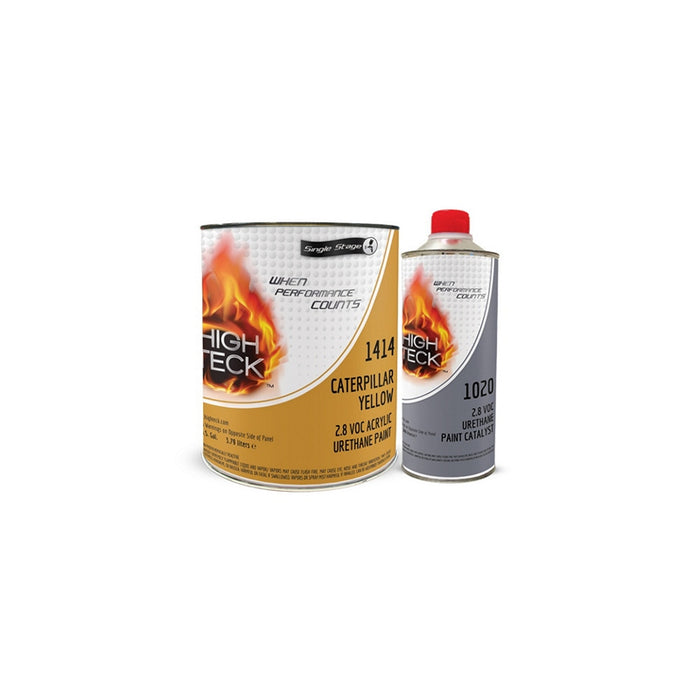

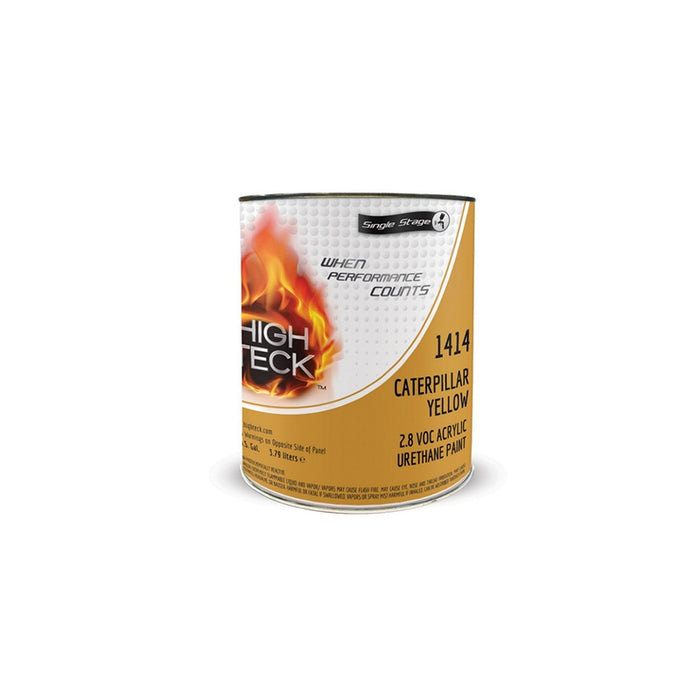

The High Teck 1414-1 Series 1400 Acrylic Urethane Factory Pack is a professional-grade 2K single stage paint system designed for direct application over properly prepared substrates. This Caterpillar Yellow finish provides excellent color match and durability for heavy equipment and industrial applications, eliminating the need for separate basecoat and clearcoat systems.
This urethane system offers practical working properties with a 10-15 minute flash time between coats and becomes tack-free in 30 minutes under standard conditions. The extended 2-hour minimum pot life at 77°F allows sufficient working time for larger repair projects. Compatible with e-coat and primer substrates, this zero VOC formulation meets strict environmental regulations while delivering professional results.
Why Pros Choose High Teck Products Acrylic Urethane
- Reducer (1070) also available for use with the 1400 single stage series
- 2.8 VOC compliant nationwide and in Canada
- Direct to metal
- 50%+ solids
- 850 sq-ft per gallon at 1 dry mil
- Less than 30 min dry to touch
- 24 hours to deliver
- Sales support material available: booklets folders High Teck display board color card gondola display
- 90+ deg of gloss
- Pot life will be a minimum of 2 hours at 77 deg F
How to Use
Construction Equipment, Trailers, Vehicles, Industrial Maintenance for Small and Medium OEM's, Municipalities, Office Equipment, Tools, Patio Furniture and More
- Ensure substrate is properly prepared e-coat or primer surface
- Mix paint according to specified weight solids ratio - pot life minimum 2 hours at 77°F
- Apply first coat and allow 10-15 minutes flash time between coats
- Apply additional coats as needed with proper flash time between each coat
- Allow 30 minutes for tack-free cure time after final coat
Compatibility
Compatible paint systems: Urethane, Acrylic, 2K.
Specifications
| Part No. | 1414-1 |
|---|---|
| Product Line | HIT |
| MFR Model | 1414-1 |
| Standard/Approvals | VOC Compliant |
| Application | Construction Equipment, Trailers, Vehicles, Industrial Maintenance for Small and Medium OEM's, Municipalities, Office Equipment, Tools, Patio Furniture and More |
| Manufacturer | High Teck Products |
| UPC | 813834014002 |
| Brand | High Teck™ |
| Rubberized | No |
| Solids Content | 58% |
| Color | Caterpillar Yellow |
| Form | Liquid |
| Container Size (gal) | 1 |
| Type | Acrylic Urethane |
| Mixing Ratio | 4:01:01 |
- Tack Free Time
- 30 minutes
- Flash Time
- 10-15 minutes
- Pot Life
- Minimum 2 hours at 77°F
- VOC Content
- Zero VOC
- Compatible Substrates
- E-coat, primer
About High Teck Products
High Teck Products is a trusted manufacturer of professional auto body and refinish products used by collision repair shops and restoration specialists across North America.
Frequently Asked Questions
What surfaces can I spray this paint on?
This acrylic urethane single stage paint is compatible with e-coat and primer substrates.
How long do I need to wait between coats?
Allow 10-15 minutes flash time between coats before applying additional material.
How long is the working time once mixed?
Pot life is a minimum of 2 hours at 77°F, giving you adequate working time for application.
When will the paint be tack-free?
The paint will be tack-free in 30 minutes under normal spray booth conditions.
Documents & Safety
- Safety Data Sheet (SDS)
- Technical Data Sheet (TDS)
- highteck_70054_catalog.pdf
- highteck_102016_specification_sheet.pdf
- sds-1414-1414-caterpillar-yellow-single-stage-usa.pdf
Why Buy from autofxmart
- Authorized distributor — authentic, factory-fresh stock.
- Fast US shipping — most orders ship within 1 business day.
- 30-day returns — buy with confidence.
- Pro-shop pricing — bulk discounts available on request.
- Expert support — questions? Email us at support@autofxmart.com.
Cure & dry schedule
Timing at 77°F
Pot Life
2 hours at 77° F
Flash
10-15 MINUTES
Tack Free
30 MINUTES
Dust Free
1 HOUR
Tape Free
OVERNIGHT
Recoat
16-24 hours at 77° F
How to apply
Steps
1Clean and degrease the surface, then scuff as needed.
2Mask off surrounding panels and trim.
3Mix to the product's ratio and strain.
4Apply 2–3 even coats, flashing between each.
5Let cure fully before sanding, buffing, or assembly.
Specifications
Full data
Frequently asked
Good to know
This listing ships High Teck Products HIT in a 1 (GL) container. Check the autofxmart catalog for other sizes and bulk pricing.
High Teck Products HIT uses a mix ratio of 4:01:01. Always measure activators and reducers accurately to maintain film properties and pot life — deviating from the ratio can cause adhesion or curing problems.
Most in-stock orders for High Teck Products HIT ship the same or next business day from our US warehouse. Expedited options are available at checkout. Freight-class items may require an additional 1–2 days for carrier pickup.
Yes. autofxmart is an authorized distributor of High Teck Products. Every unit is factory-fresh, sealed, and backed by the manufacturer's standard warranty. If you have a concern, contact support@autofxmart.com and we will make it right.
The MPN for High Teck Products HIT is 1414-1. Use this number when cross-referencing against TDS, SDS, or legacy supplier catalogs.
